Acidic electrolyzed oxidizing water is rich in potent bactericidal components, including hypochlorous acid, active oxygen, and active hydroxyl radicals. It features a broad antimicrobial spectrum and effectively eliminates various pathogenic microorganisms, such as Escherichia coli, fungi, viruses, and bacterial spores.
With its notable advantages of high efficacy, rapid action, broad-spectrum activity, environmental friendliness, and cost-effectiveness, it perfectly meets the stringent requirements for medical device disinfection in hospital CSSDs.
Hypochlorous Acid Generator Supplier
Electrolyzed Water Generator HCLO with Membrane Technology
Hypochlorous Acid Generator For SterilizationHypochlorous Acid HClO Generator Machine is an automatic working machine.

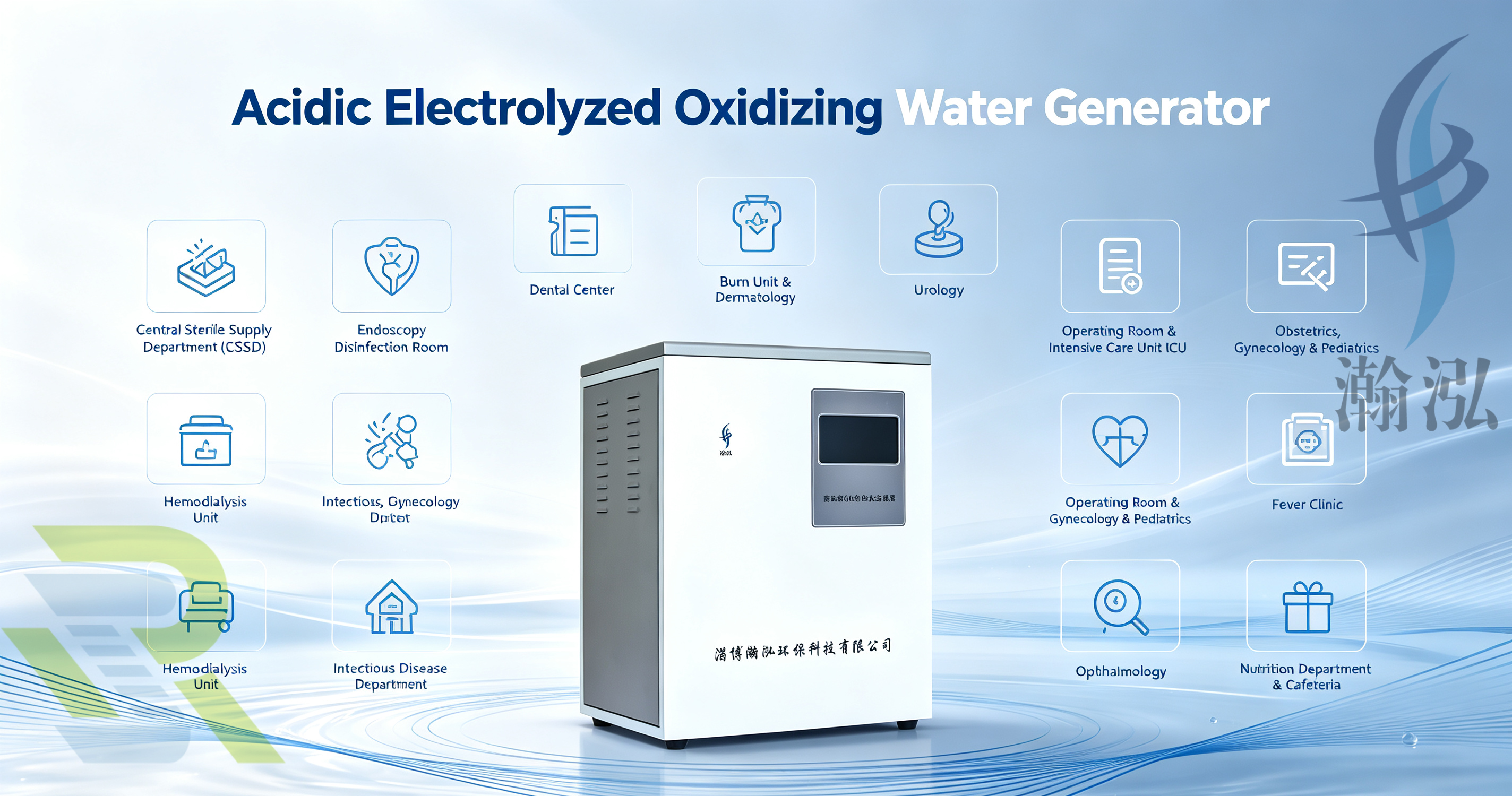

It's full name:Acidic Electrolyzed Oxidizing Water Generator.We offer two models: HHEOW and HHSAEW.
HHEOW model can produce PH 2-3 solution and PH5-6 solution,(Membrane Tech.),the electrolyte is NaCl solution.Effective chlorine:standard 40-80 mg/L (China standard);customizable to 300-400 mg/L upon request.
* HHEOW produce PH2-3 or PH5-6 Solution *
| Item | Specs | Note |
| Model | HHEOW-60 | HHEOW-120 |
| Production Capacity L/H - Customized | 60 | 120 |
| PH | 2-3 or 5-6 | 2-3 or 5-6 |
| Oxidation reduction potential (ORP) (MV) | 1100min | 1100min |
| Effective chlorine content (mg/L) | 50-70 or customized | 50-70 or customized |
| Residual chloride ion (mg/L) | 1000 or customized | 1000 or customized |
| Power (V/Hz) | 220/50 or customized | 220/50 or customized |
| Power (VA) | 550 | 750 |
| Weight (KG) | 45 | 50 |
| Size (mm) | 550x550x1550 | 550x550x1550 |
We mainly focus on Membrane Tech:
Working PrincipleWhen an electrolyte is added to raw water and the mixture undergoes electrolysis in a diaphragm cell,an acidic aqueous solution is generated at the anode side.This solution primarily contains hypochlorous acid (HClO),resulting in the production of electrolyzed oxidizing acid water.
Due to its strong oxidation properties,acid water is highly effective at eliminating microorganisms and achieving sterilization.
Meantime,at the cathode,sodium hydroxide (NaOH) is formed,producing strongly alkaline water.This alkaline solution exhibits anti-oil and anti-protein properties,along with stripping and emulsifying capabilities,enabling it to effectively remove organic matter.
Effective chlorine content (mg/L) and Production capacity are customized.
(NOTE:ORP is an important parameter in the process of waste water treatment.It directly influences the quality and efficiency of the waste water treating.)
Applications
1.Environmental Surface Disinfection – suitable for both household and hospital settings,including floors and general surfaces.
2.Food Tableware Disinfection – Effectively sanitizes dishes and utensils.
3.Hand Antisepsis – Used for routine hand washing and disinfection.
4.Wound Washing and Disinfection – Safe for cleaning and disinfecting wounds.
5.Medical Equipment Sterilization – Applicable for sterilizing medical instruments and devices.
6.Removal of Skin and Mucosa Contaminants – Assists in cleansing and decontaminating skin and mucous membranes.
Main Features:
1. PLC automatic control with LCD touch screen for easy operation.
2. Displays pH,active chlorine level,current,and working time in real time.
3. Automatic cleaning function extends electrolyzer life and ensures stable disinfectant quality.
4. Alarm alerts if current is too high or water supply is low,ensuring safe operation.
5. Electrolytic cell automatically adjusts salt dosage using a precision metering pump.
Remarks:
1. Includes 1-year free warranty.
2. Power supply:AC220V 50Hz | Rated power: 750VA | Standby power: ≤10W. _ Customized of V/Hz.
3. Pump operates automatically based on usage.
4. System components: PLC + touch screen control,electrolytic cell,monitor.
5. Equipped with corrosion-resistant pump suitable for long-distance transport.
>>>Installation and maintenance:
A-Free online support:
We test each machine under standard operating conditions before shipment.
For international orders, we offer free online support. Detailed installation and operation instructions will also be provided.
B-On-site installation service:
Should you require our technician to perform on-site installation, please provide the specific installation address. We will then calculate the round-trip airfare and associated costs, and provide you with a detailed quotation for confirmation in advance.
>>>After Sales Service:
A-Quality Assurance Commitment:
1. The equipment supplied by our company meets the quality standards stipulated by the state and has complete certificates and licenses.
2.Our company solemnly promises that the equipment provided is brand new, unused,and the latest model currently available.
3.The equipment adopts the latest improved materials and designs.
4.The equipment has no defects in design,materials,or workmanship,or any defects resulting from the seller's actions or negligence.
B- After sales Service System
1.System.Our company has established a comprehensive after-sales service system,which can efficiently and comprehensively handle equipment installation,after-sales service,and parts supply.
2.Personnel Support.Composition of after-sales service personnel:The company has a full-time technical team consisting of multiple technicians who have undergone strict training and assessment.
3.Accessory Supply.There is a commonly used repair parts warehouse within the company,ensuring that commonly used parts can be provided in a timely manner at any time.
4. After sales management.Since its establishment,the company has established records for the devices and users it sells.The machine records include the original records,installation and commissioning records,and troubleshooting records of the machine.The establishment of comprehensive archives provides a guarantee for the troubleshooting and tracking services of machine failures.
C-Timeliness of after-sales service
General Faults: Immediate telephone support is provided upon receiving a maintenance request.
Complex Faults: On-site repair services are available to ensure equipment is restored to normal operation.
