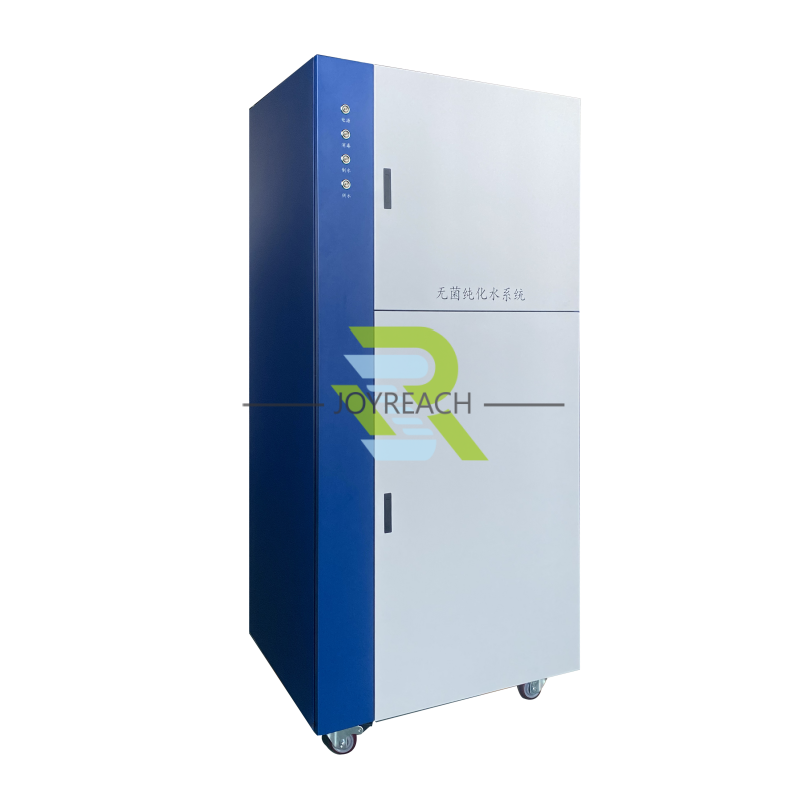

Endoscope medical water treatment equipment

Typical Applications

• Pre-cleaning rinse stations in hospital gastroenterology, pulmonology, and urology endoscopy centers

• Centralized water supply for multiple cleaning workstations

• Any medical setting requiring bacteria-free rinse water for heat-sensitive instruments

1. Compliance & Water Quality

• Strictly meets WS507-2022 standard for flexible endoscope cleaning.

• Bacterial count ≤ 10 CFU/100 mL – ensures sterile, high-purity water.

• Prevents contamination at the pre-cleaning stage, guaranteeing safety and full regulatory compliance.

2. Robust Pre-Treatment System

• Built specifically for endoscope pre-cleaning environments.

• Uses imported disinfection modules and precision filters for fully automated disinfection – no dedicated operator needed.

• Long-lasting bacterial barrier with sensor-activated door lock for operational safety.

• Automatic flushing and regeneration, plus built-in protections: dry-run, over-pressure, and low-pressure safeguards.

• Reliable for continuous, high-volume pre-cleaning workflows.

3. Smart & Unattended Operation

• Fully automatic program control – auto start/stop and full-cycle automation.

• Enables truly unattended operation, reducing staff workload in endoscopy centers.

• Boosts efficiency and fits grassroots/primary care facility needs.

4. Real-Time Monitoring & Precision Control

• Equipped with high-sensitivity conductivity sensor with automatic calibration and digital temperature compensation.

• Continuously monitors water quality, pressure, and flow in real time.

• Ensures every pre-cleaning step uses safe, compliant water – no quality surprises.

5. Softening & Filtration for Pre-Cleaning

• Fully automatic softening system with self-flushing and regeneration.

• Effectively removes impurities and scale – prevents clogging in endoscope channels and equipment.

• Extends equipment life and ensures consistent initial cleaning results, meeting fine-tuned pre-cleaning water requirements.

>>>Main Characteristics:
1. Product water quality complies with national standards for disinfection supply centers.
2. Fully automatic pretreatment system with automatic cleaning and regeneration functions.
3. Independent water supply lines for soft water and pure water, enabling multi-point distribution.
4. PLC automatic program control for unattended operation.
5. Comprehensive protection system including high/low pressure protection for water inlet.
6. LCD touch screen with bilingual menu (Chinese/English).
7. RO membrane features pulse automatic cleaning function.
8. Compact carbon steel cabinet with simple structure and small footprint.
9. Compatible with all major brands of cleaning and disinfection equipment.
10. Online monitoring and display of water quality parameters.
11. Constant pressure water supply system for stable operation.
12. Energy-saving and water-saving design.

>>>More Knowledge about Parts:
1.Silica Sand Filter - Removes suspended solids and particulate matter, effectively reducing water turbidity.
2.Activated Carbon Filter - Eliminates color, odor, and a significant portion of organic contaminants and biological organisms.
3.Sodium Ion Exchanger (Water Softener) - Removes calcium and magnesium ions through ion exchange process, effectively softening the water.
4.Precision (Security) Filter - Ensures that particle size entering the reverse osmosis membrane is less than 0.1 micron, protecting downstream components.
5. Reverse Osmosis (RO) System - Reverse osmosis uses a semi-permeable membrane to remove dissolved salts, colloids, microorganisms, and organic matter under pressure. It removes over 99% of contaminants, with advantages including low energy consumption, simple operation, and high effluent quality.
6. UV Sterilizer - Uses ultraviolet light to inactivate bacteria and microorganisms that may pass through the RO membrane.
7. Ozone Sterilizer - Produces ozone to eliminate microorganisms that survive UV treatmen
