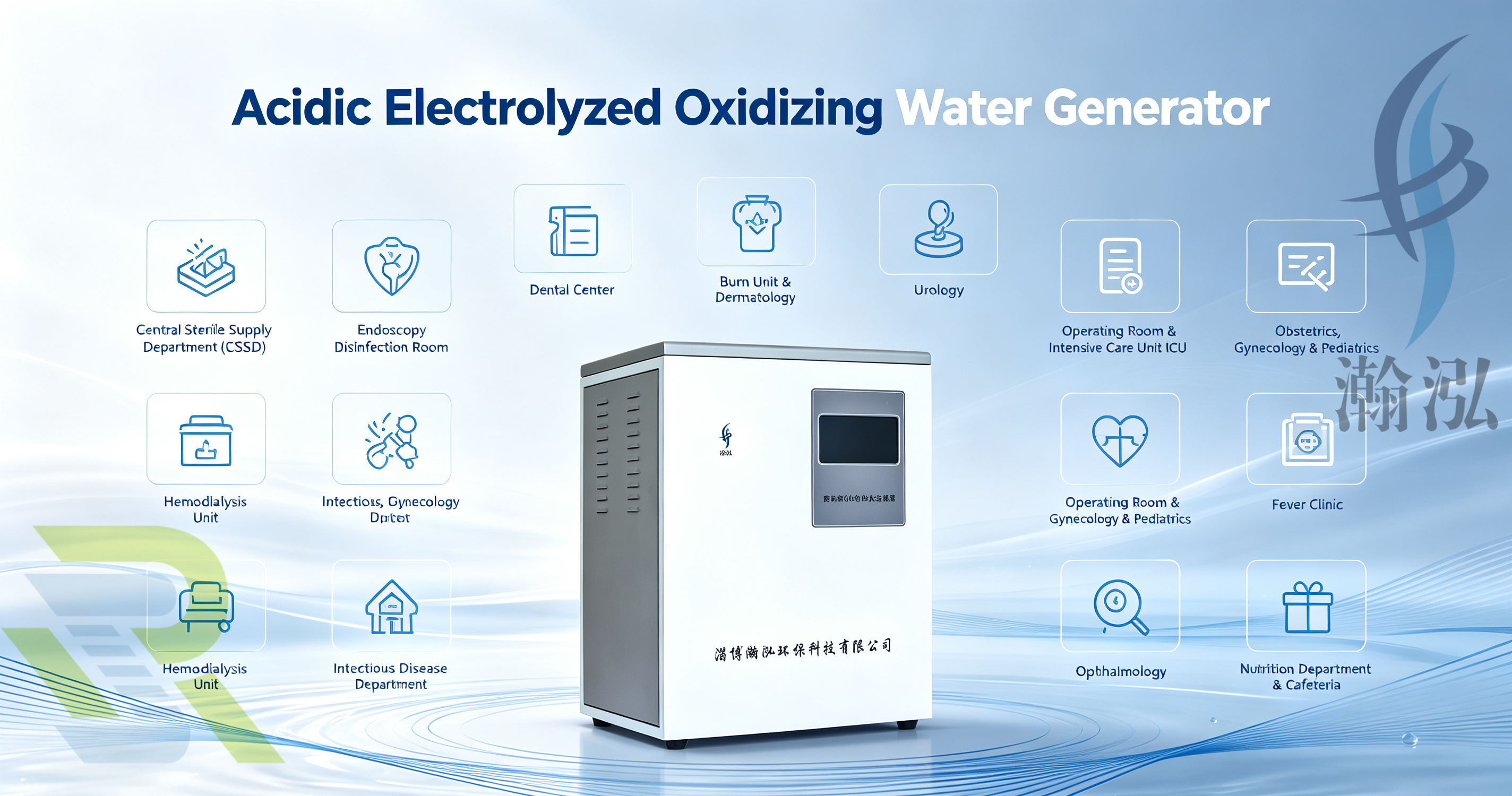

Horizon Micro-Acidic Electrolyzed Water Generator
– a dedicated, eco-friendly disinfection solution for surgical instruments and endoscopes. Using pure electrochemical technology, it produces a non-toxic, residue-free disinfectant that kills 99.90%+ of pathogens, including bacteria, spores, and viruses.
This acidic electrolyzed oxidizing water generator is purpose-built for hospital CSSDs, closely aligned with core clinical disinfection and sterilization needs. Leveraging advanced electrolysis technology and an intelligent control system, it delivers a safe, reliable, and convenient integrated solution for medical device disinfection, ensuring comprehensive disinfection quality and safeguarding diagnostic and therapeutic safety.
Hypochlorous Acid Generator For Sterilization
Hypochlorous Acid HClO Generator Machine is an automatic working machine.It's full name:Acidic Electrolyzed Oxidizing Water Generator.We offer two models:HHEOW and HHSAEW.
1.HHEOW model can produce PH 2-3 solution and PH5-6 solution,(Membrane Tech.),the electrolyte is NaCl solution.
Effective chlorine:standard 40-80 mg/L (China standard);customizable to 300-400 mg/L upon request.
* HHEOW produce PH2-3 or PH5-6 Solution *
| Item | Specs | Note |
| Model | HHEOW-60 | HHEOW-120 |
| Production Capacity L/H - Customized | 60 | 120 |
| PH | 2-3 or 5-6 | 2-3 or 5-6 |
| Oxidation reduction potential (ORP) (MV) | 1100min | 1100min |
| Effective chlorine content (mg/L) | 50-70 or customized | 50-70 or customized |
| Residual chloride ion (mg/L) | 1000 or customized | 1000 or customized |
| Power (V/Hz) | 220/50 or customized | 220/50 or customized |
| Power (VA) | 550 | 750 |
| Weight (KG) | 45 | 50 |
| Size (mm) | 550x550x1550 | 550x550x1550 |
2.HHSAEW model produce PH 5-6 solution,(Non-Membrane Tech.),the electrolyte is HCl solution.
Effective chlorine:standard 40-80 mg/L (China standard); customizable to 300-500 mg/L upon request.
* HHSAEW produce PH5-6.5 solution * The cost of it is lower than HHEOW.
| Item | Specs | Note |
| Model | HHSAEW-60 | HHSAEW-120 |
| Production Capacity L/H - Customized | 60 | 120 |
| PH | 5-6 | 5-6 |
| Oxidation reduction potential (ORP) (MV) | 600 min | 600 min |
| Effective chlorine content (mg/L) | 40-80 or customized | 40-80 or customized |
| Residual chloride ion (mg/L) | 1000 max | 1000 max |
| Power (V/Hz) | 220/50 or customized | 220/50 or customized |
| Power (VA) | 550 | 750 |
| Weight (KG) | 45 | 50 |
| Size (mm) | 550x550x1100 | 550x550x1100 |
Effective chlorine content (mg/L) and Production capacity are customized.
Green & Eco-Friendly
Uses Horizon’s pure electrochemical technology – generates disinfectant via electrolysis, no chemical mixing. Leaves no residue, no irritation, no toxicity. Naturally reverts to plain water. Will not corrode instruments, endoscopes, or harm people or the environment. Meets hospital standards for sterility, safety, and sustainability.
Broad-Spectrum & Highly Effective
Kills bacteria, spores, viruses, and microbes rapidly. Over 99.90% kill rate against common pathogens (e.g., S. epidermidis, E. coli). Thoroughly removes bioburden from instrument surfaces and endoscope channels, preventing cross-infection – fully compliant with stringent surgical and endoscopic disinfection requirements.
Smart Control, Easy Operation
Full-automatic touchscreen interface – intuitive, no special training needed. Built-in alarms and self-diagnostics monitor performance in real time. Adjust disinfection parameters via screen (no manual valves), ensuring stable water quality and consistent results – ideal for high-frequency, standardized hospital use.
Durable Core Components
Electrolytic cell uses nano-sintered technology – wear-resistant, corrosion-resistant, oxidation-resistant. Service life up to 20,000 hours, reducing maintenance costs and replacement frequency. Reliable for long-term, continuous daily operation.
Online Monitoring & Traceability
Real-time monitoring system displays all water quality parameters, ensuring every batch meets medical disinfection standards. Full traceability supports regulatory compliance and quality assurance.
