(Export Office: Zibo Joyreach New Materials Co.,Ltd). Our company has been a leading brand of medical water purification in China since 2012.We combine R&D,design,production,sales,and service to deliver high-quality water treatment solutions for the medical and healthcare industry.
We have a professional team of experts in water treatment and electrical technology.With advanced technology and years of experience,we have developed a wide range of water treatment products that meet industry standards.Our business philosophy has earned trust from customers worldwide.We always stick to the principles of honesty and innovation,and keep up with the latest developments in water treatment technology both domestically and internationally.
1. Comply with YY0572-2015 and YY0793-2010 hemodialysis water quality standards;
2. Meet the AAMI/ASAIO standard for hemodialysis water in the United States;
3. Meet the relevant requirements of Standard Operating Procedures for Blood Purification (2010);
4. Ion removal rate:≥ 99.5%;
5. Bacterial endotoxin removal rate: ≥ 99.9%;
6. Water quality:total bacterial count ≤ 10CFU/ml;
7. Water quality:endotoxin<0.03EU/ml.

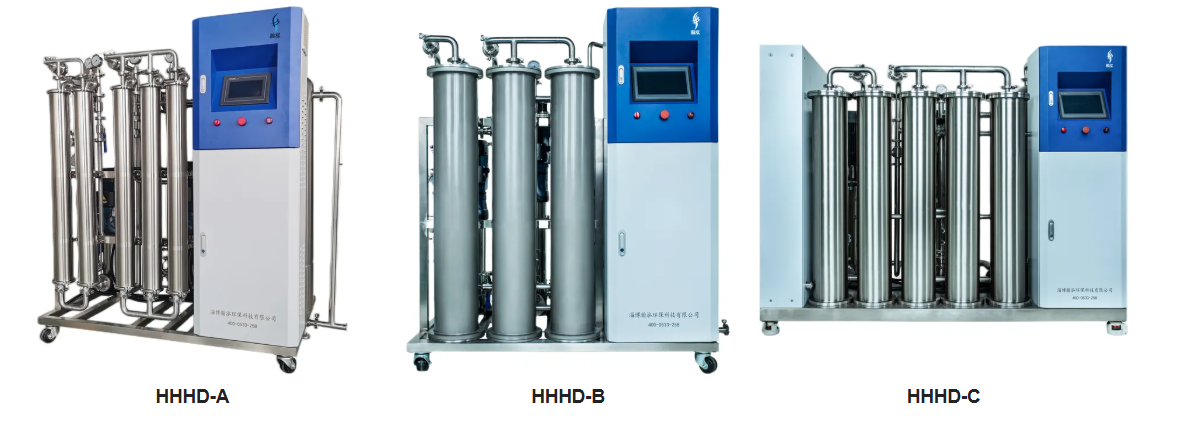

>>>Models HHHD-RO
| Model | Water Output L/H(25℃) | Power(K w) | Supply For Beds' Qty (Set) | Weight (Kg) | Dimension (L×W×H)Mm |
| HHHD-RO | 300 | 380V/4.0 | 3-7 | 260 | 900x750x1600 |
| 600 | 380V/5.0 | 5-15 | 300 | 1500x750x1750 | |
| 1000 | 380V/7.0 | 10-25 | 400 | 1500x750x1750 | |
| HHHD-RO | 1200 | 380V/10.0 | 15-30 | 480 | 1200x750x1750 |
| 1500 | 380V/10.0 | 20-40 | 550 | 1200x750x1750 | |
| HHHD-RO | 2000 | 380V/12.0 | 30-70 | 650 | 1500x750x1750 |
| 3000 | 380V/12.0 | 40-80 | 750 | 1500x800x1750 |
>>>The HHHD-RO Water Treatment System Consists of:
1. Automatic Pretreatment System:
Comprising a raw water booster pump,pre-filter,multimedia filter,activated carbon filter,water softener,and a final precision filter to ensure feed water quality for the downstream RO process.
2. Reverse Osmosis Host:
Featuring a two-stage RO design for high-purity water production,a concentrate water recycling system to enhance water efficiency,and an integrated automatic control system for reliable operation.
3. Water Supply & Distribution Loop:
Engineered with a U-type main circulation loop and a U-type secondary circulation loop to maintain constant flow velocity and prevent bacterial growth,ensuring water purity at the point of use.
4. Automatic Disinfection System (Optional):
4.1 Chemical Disinfection System
4.2 Pasteurization (90°C) and Over-temperature (121°C) Sterilization System
5.Remote Monitoring System:
Enables real-time remote supervision of various operating parameters and equipment working status via mobile phone or computer,facilitating proactive system management and maintenance.
1.3 Non-Dead Chamber Housings:Special membrane housing design ensures complete water flow and no residue during disinfection.
2. Advanced Endotoxin Control
2.1 Ultra-pure dialysis technology ensures high-efficiency endotoxin removal.2.2 Production water washing process minimizes bacterial endotoxin growth.
3. Reliable Disinfection Technology
3.1 Heated disinfection process with tankless,zero dead-leg design reduces bacteria breeding.3.2 Online integrated non-contact heating ensures efficient disinfection,cleaner water quality,and safe water-electricity isolation.
4. Stable and Reliable Rlectrical Design and Operation Mode:
4.1 Simple and practical operation interface,stable and safe control system;4.6 Real-time monitoring of conductivity,temperature,pressure and other operating parameters,with multiple alarm safety protection functions.
