Blood Dialysis Water Purification Equipment

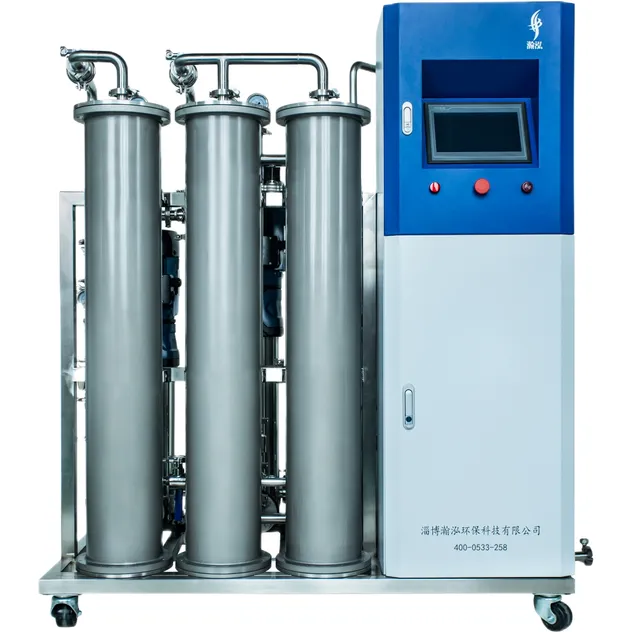

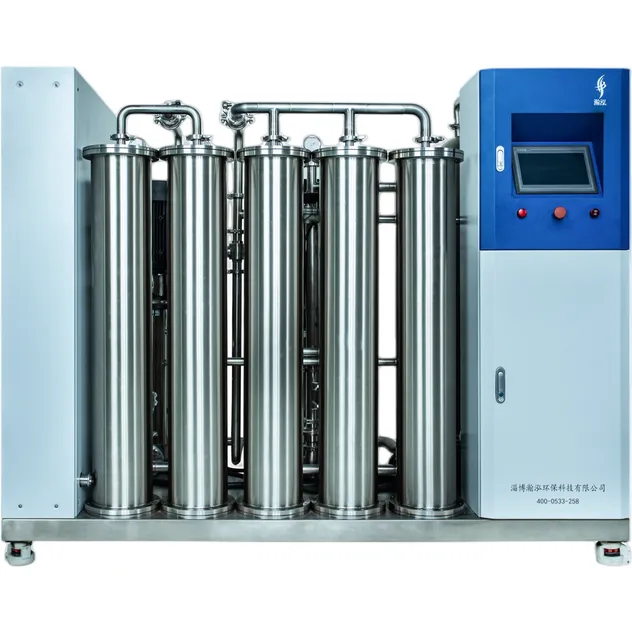

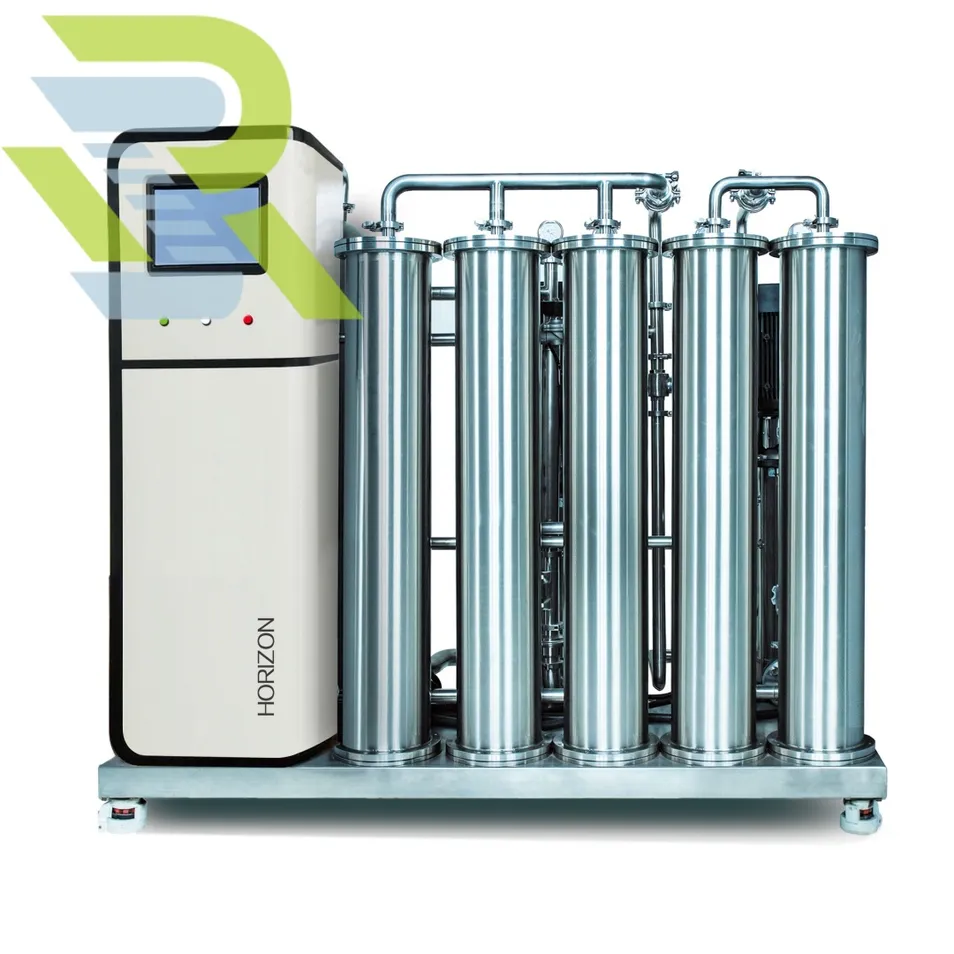

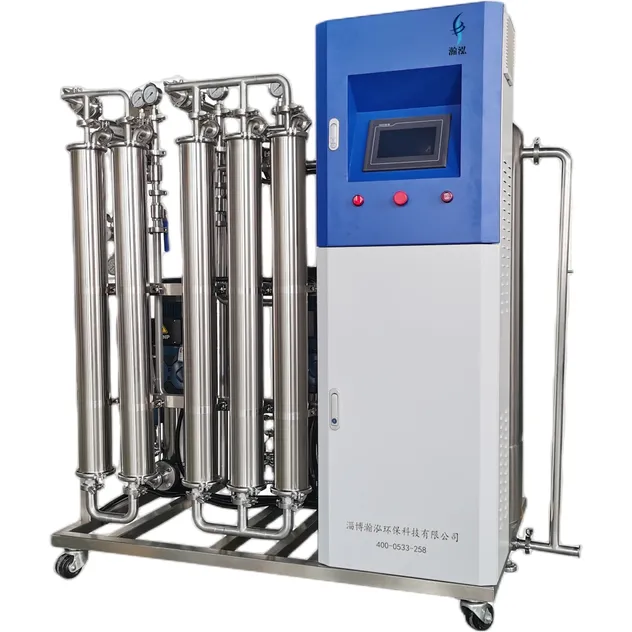

HHHD Hematodialysis(Hemodialysis) Water Treatment System For Hospital HD Department  The HHHD-RO water treatment equipment is specifically designed for hemodialysis rooms and centers,meeting the stringent water quality requirements essential for safe and effective hemodialysis treatment.This advanced system is fully compatible with a wide range of domestic and international dialysis machines,ensuring seamless integration into any dialysis facility.By delivering consistently high-purity water,the HHHD-RO series provides a reliable and efficient foundation for optimal dialysis therapy.For Hemodialysis department,we focus on it's water purification system for many years.

Factory: Zibo Horizon is very famous brand in China.

The products are well recognized in hospitals all over China and now our machines are exported to Italy, Russia,Africa,Turkey,UAE,Pakistan and so on with good feedback.

FAQ:

Before providing a quotation for the water treatment machine, we need to know the following information:
1- The quality of the feed water:  water test report.
2- The quality of finished the purified water:  such as chemical content and conductivity. We have it's standard water report for HD dept, you could share yours.

3- The production capacity of HD RO pure water (L/H) OR you can tell us how many beds need to use RO water.
  Such as every 3 beds need 100LPH, every 7 beds need 300LPH, every 15 beds need 600LPH and every 20 beds need 1000LPH,we can make suggest according to beds qty.

4- A layout drawing of the installation room(s).

5- It has High-temperature heat disinfection and Chemical disinfection.

Which method does your side need? Normally, Heat disinfection is cheaper than Chemical disinfection.

>>>Generalization:

1. Comply with YY0572-2015 and YY0793-2010 hemodialysis water quality standards;

2. Meet the AAMI/ASAIO standard for hemodialysis water in the United States;
3. Meet the relevant requirements of Standard Operating Procedures for Blood Purification (2010);
4. Ion removal rate:≥ 99.5%;
5. Bacterial endotoxin removal rate: ≥ 99.9%;
6. Water quality:total bacterial count ≤ 10CFU/ml;

7. Water quality:endotoxin<0.03EU/ml.

SpecificationTechnical Specifications

>>>Models HHHD-RO

>>>The HHHD-RO Water Treatment System Consists of:

1. Automatic Pretreatment System:

Comprising a raw water booster pump,pre-filter,multimedia filter,activated carbon filter,water softener,and a final precision filter to ensure feed water quality for the downstream RO process.

2. Reverse Osmosis Host:
Featuring a two-stage RO design for high-purity water production,a concentrate water recycling system to enhance water efficiency,and an integrated automatic control system for reliable operation.

3. Water Supply & Distribution Loop:
Engineered with a U-type main circulation loop and a U-type secondary circulation loop to maintain constant flow velocity and prevent bacterial growth,ensuring water purity at the point of use.

4. Automatic Disinfection System (Optional):
4.1 Chemical Disinfection System
4.2 Pasteurization (90°C) and Over-temperature (121°C) Sterilization System

5.Remote Monitoring System:

Enables real-time remote supervision of various operating parameters and equipment working status via mobile phone or computer,facilitating proactive system management and maintenance.

>>>Technical Design Features:

1. Advanced Bacteria Control

1.1 Zero Dead-Leg Design:The system is engineered with 3D principle technology to eliminate dead legs and prevent water stagnation.
1.2 Turbulent Flow Prevention:U-type main + secondary circulation ensures flow velocity >1 m/s,creating turbulent flow that inhibits bacterial growth and attachment.
1.3 Non-Dead Chamber Housings:Special membrane housing design ensures complete water flow and no residue during disinfection.

2. Advanced Endotoxin Control.
2.1 Ultra-pure dialysis technology ensures high-efficiency endotoxin removal.
2.2 Production water washing process minimizes bacterial endotoxin growth.

3. Reliable Disinfection Technology
3.1 Heated disinfection process with tankless,zero dead-leg design reduces bacteria breeding.
3.2 Online integrated non-contact heating ensures efficient disinfection,cleaner water quality,and safe water-electricity isolation.

4. Stable and Reliable Rlectrical Design and Operation Mode:
4.1 Simple and practical operation interface,stable and safe control system;
4.2 Two-stage reverse osmosis is directly coupled,and the produced water is directly supplied to the dialysis machine through circulation,and there is no produced water tank for storage;
4.3 The whole system is designed with no dead space,and operates with automatic pulse washing day and night to prevent the growth and attachment of microorganisms;
4.4 It has the functions of thermal disinfection and chemical disinfection,and can realize full-automatic one-button disinfection;
4.5 Multiple working modes operate independently,with 1-RO, 2-RO and two levels to fully ensure the safety and continuity of dialysis;

4.6 Real-time monitoring of conductivity,temperature,pressure and other operating parameters,with multiple alarm safety protection functions.

 We have a professional team of experts in water treatment and electrical technology.With advanced technology and years of experience,we have developed a wide range of water treatment products that meet industry standards.Our business philosophy has earned trust from customers worldwide.We always stick to the principles of honesty and innovation,and keep up with the latest developments in water treatment technology both domestically and internationally.

Our Advantages:

1.Professional Hospital water treatment equipment manufacturer (pure water,acidic water treatment's design,equipment construction training.Supply water machines for hospital center supply room,endoscopy room,hemodialysis room,operating room,laboratory, laboratory,dental department,pathology, blood bank, etc.),Hypochlorous acid (disinfectant).
2.Possess the medical device production license,the disinfection product hygiene production license,the medical device registration certificate,(hemodialysis pure water, acidified water).

3.Possess 4 invention patents,16 utility model patents,1 design patent,and 12 software copyrights.

4.Having certifications such as high-tech enterprise,ISO9001,IS045001,IS014001,ISO13485,CE certification,and five-star after-sales service certification.
